  • Copper Finned Tube Integral Low Fin Tube

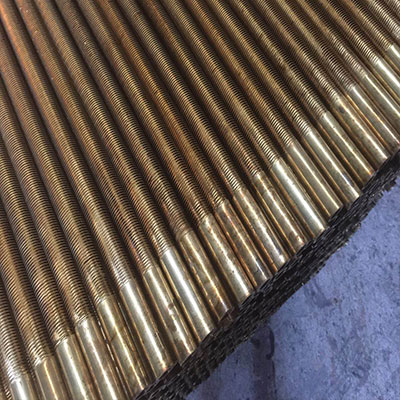

Copper Finned Tube Integral Low Fin Tube

Copper Finned Tube Integral Low Fin Tube

  • Material: Copper
  • Fin Type: Spiral, Low Fin
  • Application: Radiator
  • Brand: Minyang
  • Product description:Copper Low Fin Tube with superior dimensional control in Copper, Brass, Cupro Nickel, Stainless Steel & Carbon Steel Tube materials, produced by Chinese manufacturer Minyang Heat Transfer with very go
  • INQUIRY

Copper Finned Tube Integral Low Fin Tube for Radiator Heat Transfer

Our facilities are capable of producing all types of integral low fin tubes / integral medium fin tubes and integral high fin tubes to suit every customer’s specific requirements..

Materials standard

Copper Alloy: ASTM B75/ B359 C12200/ 44300/ 68700/ 70600/ 71500

Carbon Steel: SA179 and others

Stainless Steel: SS304, SS316/ SS316L

EN and DIN standards are also available on request.

Specification on Integral Low Fin Tube

Tube Material

Stainless Steel, Copper, Carbon steel, Alloy

Tube OD

10-38mm

Tube Wall Thickness

1.0mm-5.0mm

Fin Material

Same tube as base tube

Fin thickness

0.3mm

Fin Pitch

0.6~2mm

Fin Height

less than 1.6mm

Features

1. Helpful for the dropping of the cold condensate at the bottom of the tube, reducing the liquid film and thermal resistance but improving the heat transfer efficiency.

2. Reduced size and cost saving, but with increased performance of existing equipment.

3. Providing 3 times of external surface heat transfer area than bare tube

4. Wide application, strengthen evaporation, condensation, gaseous heat and liquid heat transfer for shell medium.

Applications:

Low finned tubes are a reliable solution for controlling the temperature of gases and liquids, or for evaporating and condensing refrigerants. Thanks to their larger heat transfer surface area, they offer considerable potential to save in terms of materials and fill volumes, especially applicable to air and other gases on the fin-side and a fluid on the tube-side. Applied in heat exchanger for oil refinery and petrochemical plants, condenser and heat exchanger for petrochemical plants, condenser and evaporator for power plants.
