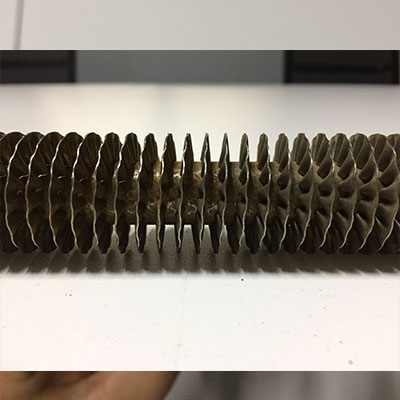

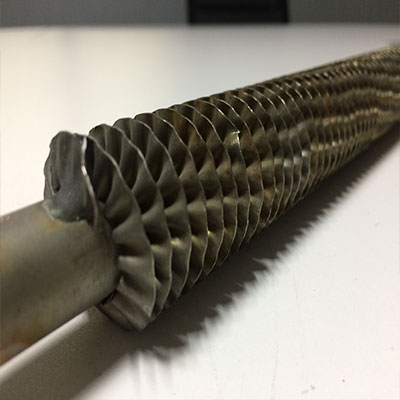

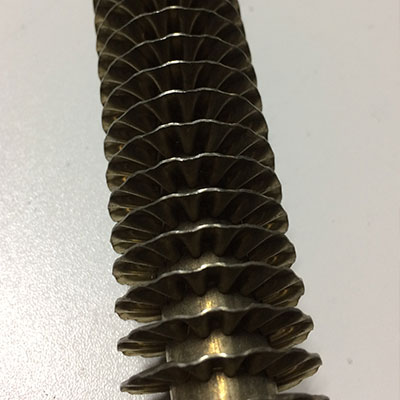

Finned Tube Heaters Copper Crimped Fin Tube

Finned Tube Heaters Copper Crimped Fin Tube

Both base tube and fin can be copper, carbon steel and stainless steel

Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B

Stainless Steel: TP304/TP304L , TP316 / TP316L

Specification of crimped fin tube

Base Tube OD: 15.88~51mm

Fin Pitch: 3.5~10mm

Fin Height: maximum 16mm

Fin Thickness: 0.2~0.4mm

Features of crimped fin tube

1. Fins and tubes are connected tightly

2. Uniform pitch, small fold, no ash accumulation

3. Small thermal contact resistance, high heat transfer capability

4. Maximum working temperature: 120°C

To better quote your enquiry, please indicate following specifications

1. Tube/ Fin Material

2. Tube Outer Diameter

3. Fin Height

4. Fin Pitch
