Home > Extruded Finned Tube

  • Stainless Steel Aluminum Composite Fin Tube
  • Stainless Steel Aluminum Composite Fin Tube
Stainless Steel Aluminum Composite Fin TubeStainless Steel Aluminum Composite Fin Tube

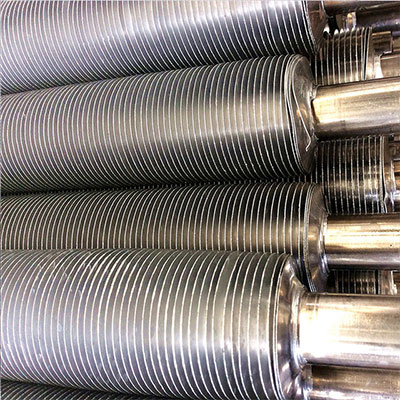

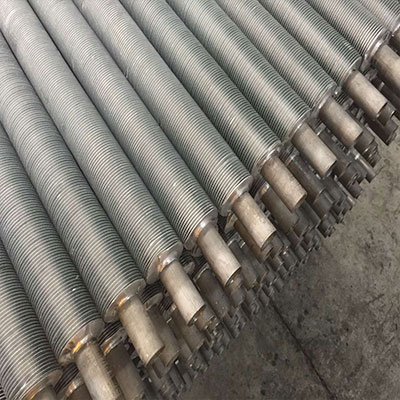

Stainless Steel Aluminum Composite Fin Tube

  • Fin Type: Extruded Fin Tube
  • Tube Material: Carbon steel, stainless steel, copper, aluminum
  • Fin Material: Copper, aluminum
  • Fin Tube Length: No Limit
  • Product description:Stainless Steel Aluminum Composite Fin Tube is manufacturer by Chinese manufacturer Minyang Heat Transfer with good quality, reasonable prices and fast delivery.
  • INQUIRY

Double Metal Composite Fin Tube Stainless Steel Aluminum Composite Fin Tube

The finned tube provide by us is Extruded Type.

Based on this structure, the Extruded type can survive more severe working conditions than other finned tubes. Also it, on the other hand, shows several unique features such as enhanced physical structure, resistance to vibration, anti-corrosion ability, and long service life, etc.

Under this technology, there are two major types of finned tubes available with us, Single metal tubes and Bimetallic tubes. The former uses Copper, Aluminum, and Copper Nickel alone. The later has a core tube on the inside made of harder material. In this case, the outer tube is rolled onto the core tube in order to provide for a tight bond and good thermal contact between the two tubes.

EXTRUDED FINNED TUBE SPECIFICATIONS

Tube Material

Stainless Steel, Copper, Carbon steel, Alloy

Tube OD

10-57mm

Tube Wall Thickness

1.0mm-4.0mm

Fin Material

Aluminum, copper

Fin OD

25~82mm

Fin thickness

0.2~1mm

Fin Pitch

1.8~8mm

Fin Height

less than 18mm

Extruded Bimetallic Finned Tube is combined with two different materials.

Materials Standard

Base Tube

Stainless steel tube: SA789, SA213, SA312, SA210, SA249, 304, 316L, T11, T22, T91

Fin material: Aluminum 1060, 1050, 1070, 6063,6061,3003
