Home > Extruded Finned Tube

  • ASTM 316L Seamless Tube and Aluminum Composite Fin Tube
  • ASTM 316L Seamless Tube and Aluminum Composite Fin Tube
  • ASTM 316L Seamless Tube and Aluminum Composite Fin Tube
ASTM 316L Seamless Tube and Aluminum Composite Fin TubeASTM 316L Seamless Tube and Aluminum Composite Fin TubeASTM 316L Seamless Tube and Aluminum Composite Fin Tube

ASTM 316L Seamless Tube and Aluminum Composite Fin Tube

  • Fin Type: Extruded Fin Tube
  • Tube Material: SS316L, SS304, SS316, SS304L
  • Fin Material: Al1050/, Al1060
  • Fin Tube Length: No Limit
  • Product description:Composited Fin Tube provided by Minyang Heat Transfer is with good quality and reasonable prices. Factory Direct Sell!
  • INQUIRY

ASTM 316L Seamless Tube and Aluminum Composite Fin Tube

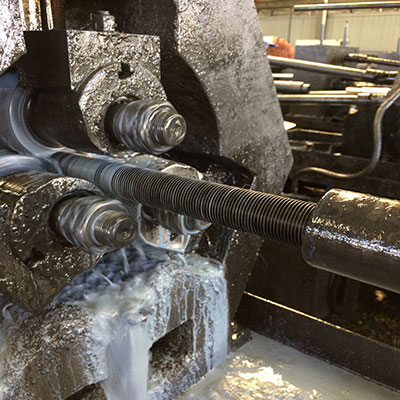

Making of two tubes, the outer tube is rolled onto the core tube in order to provide for a tight bond and good thermal contact between the two tubes.

For composite finned tube, we need to pipe line——compressing or rolling——strip peeling——washing——pressure test——blast blowing——packaging.

Overall rolling fin is smooth and has no burr, so it is easy to clean. It is easy to make the fin surface wet and cooled with water when makes it cold during heating air-conditioning engineering. In the situation with drying, heating and other heat exchanging, its surface is handles by anodizing, which with beautiful color and luster, and can effectively prevent surface corrosion.

EXTRUDED FINNED TUBE SPECIFICATIONS

Tube Material

Stainless Steel, Copper, Carbon steel, Alloy

Tube OD

10-57mm

Tube Wall Thickness

1.0mm-4.0mm

Fin Material

Aluminum, copper

Fin OD

25~82mm

Fin thickness

0.2~1mm

Fin Pitch

1.8~8mm

Fin Height

less than 18mm


Extruded Bimetallic Finned Tube is combined with two different materials.

Materials Standard

Base Tube

Stainless steel tube: SA789, SA213, SA312, SA210, SA249, 304, 316L, T11, T22, T91

Fin material: Aluminum 1060, 1050, 1070, 6063,6061,3003

Applications:

Typically extruded fins are used in corrosive atmospheric conditions, such as off-shore applications, widely applied in equipment like water cooler, air cooler, heat exchanger, boiler and burners and so on.

Maximum working temperature is 285°C.
