Stainless or carbon steel tubes with wrapped or embedded aluminum fins

Place of Origin: Jiangsu, China
Port: Shanghai
Delivery Time: 45 days from deposit received date
Payment Term: TT in advance + balance before delivery
Product description：Quality Embedded Fin Tube manufacturers & exporter - buy Carbon Steel / Aluminium Embedded Fin Tube , G Finned Tubes For Heat Exchanger from China manufacturer
INQUIRY

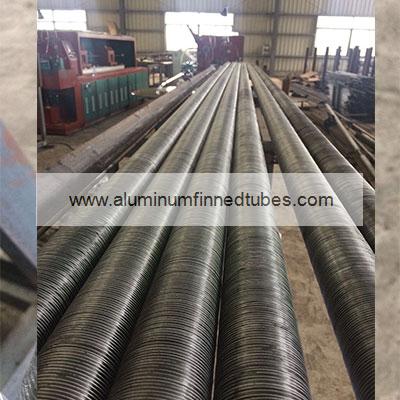

Stainless or carbon steel tubes with wrapped or embedded aluminum fins

Base tube material: SA179 SMLS OD25.4 x THK2(MW) x 11000L
Fin Material: AL1060; OD57.15mm x 0.41mm THK x 11FPI

Fin is embedded into the outer wall of the tube, but gives no surface protection. Ingeneral use for continuous process applications; ie refineries, petrochemical,fertilizer and gas plants.
Upper temperature limit: 450°C

Material: Carbon Steel, Copper Stainless Steel, Alloy, Aluminium
Bare tube OD: 16-63mm Fin Pitch: 2.1-5.0mm Fin Height: <17mm Fin Thick: About 0.4mm
