  • Extruded Mono Metal Fin Tube with Aluminum Muff Tube Al1060, 6063
  • Extruded Mono Metal Fin Tube with Aluminum Muff Tube Al1060, 6063
Extruded Mono Metal Fin Tube with Aluminum Muff Tube Al1060, 6063Extruded Mono Metal Fin Tube with Aluminum Muff Tube Al1060, 6063

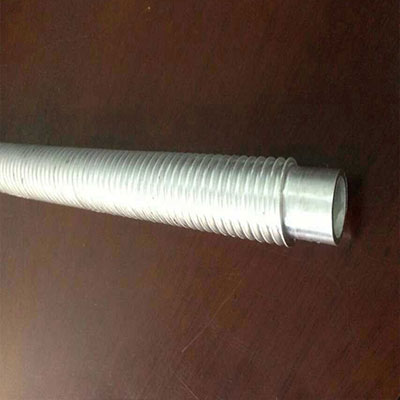

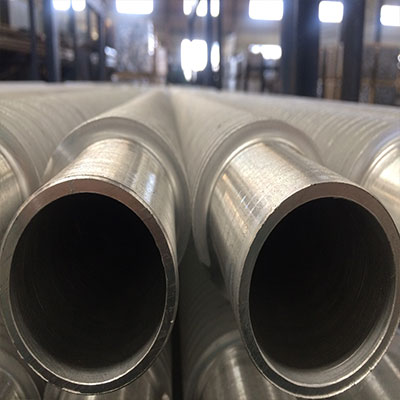

Extruded Mono Metal Fin Tube with Aluminum Muff Tube Al1060, 6063

  • Fin Type: DR Extruded
  • Tube Material: Aluminum
  • Fin Material: Aluminum
  • Brand: Minyang
  • Product description:Aluminium fins are formed from a bimetallic tube consisting of a base aluminunm tube and an aluminium muff tube. Mono-metal extruded fin tube on sales.
  • INQUIRY

Extruded Bimetallic Finned Tube is combined with same tube and fin materials of aluminum or two different materials.

In the process of manufacturing Extruded Fin Tube, a Muff Tube (Outer) and a Base tube (Inner) are used. The base tube is inserted inside the muff tube.

EXTRUDED FINNED TUBE SPECIFICATIONS

Tube Material

Aluminum 1060, 6063, 1100

Tube OD

10-57mm

Tube Wall Thickness

1.0mm-4.0mm

Fin Material

Aluminum

Fin OD

25~82mm

Fin thickness

0.2~1mm

Fin Pitch

1.8~8mm

Fin Height

less than 18mm
