Home > Extruded Finned Tube

  • Mono Aluminum Finned Tubes
  • Mono Aluminum Finned Tubes
Mono Aluminum Finned TubesMono Aluminum Finned Tubes

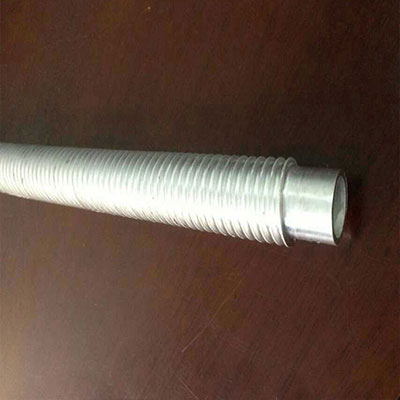

Mono Aluminum Finned Tubes

  • Fin Type: DR Extruded
  • Tube Material: Aluminum
  • Fin Material: Aluminum
  • Brand: Minyang
  • Product description:Mono Aluminum Finned Tubes, Exporting Low Fin Tube, Integral or Single Metal Finned Tube, we are a factory direct sale manufacturer in China market.
  • INQUIRY

Mono Aluminum Finned Tubes

In the process of manufacturing Extruded Fin Tube, a Muff Tube (Outer) and a Base tube (Inner) are used. The base tube is inserted inside the muff tube. Then the fining is done by extruding the fins from the Muff Tube. During the process the muff tube forms a very strong bond with the Base tube ensuring almost no air gap or non contact area between the Muff Tube and the Base Tube.

EXTRUDED FINNED TUBE SPECIFICATIONS

Tube Material

Aluminum 1060, 6063, 1100

Tube OD

10-57mm

Tube Wall Thickness

1.0mm-4.0mm

Fin Material

Aluminum

Fin OD

25~82mm

Fin thickness

0.2~1mm

Fin Pitch

1.8~8mm

Fin Height

less than 18mm

Extruded Bimetallic Finned Tube is combined with same tube and fin materials of aluminum or two different materials.
