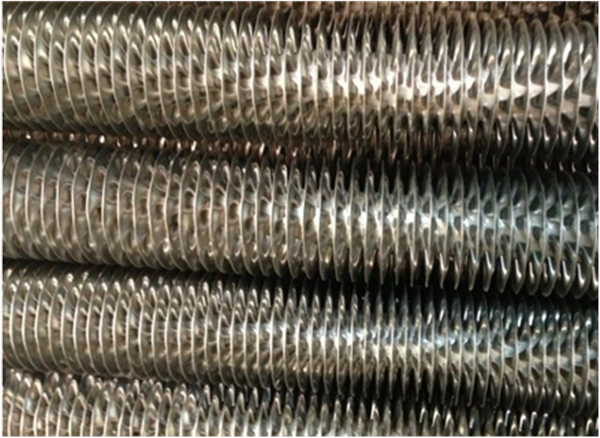

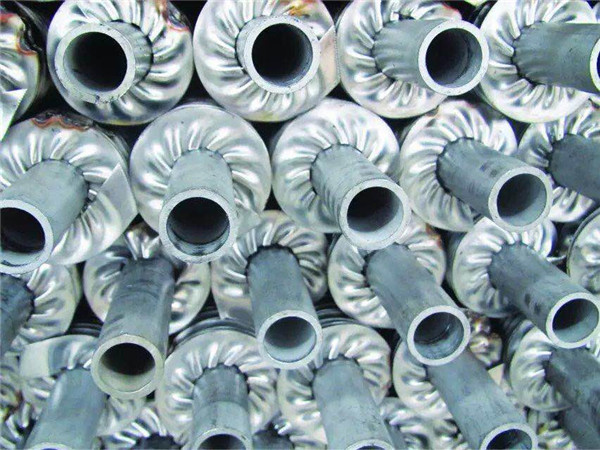

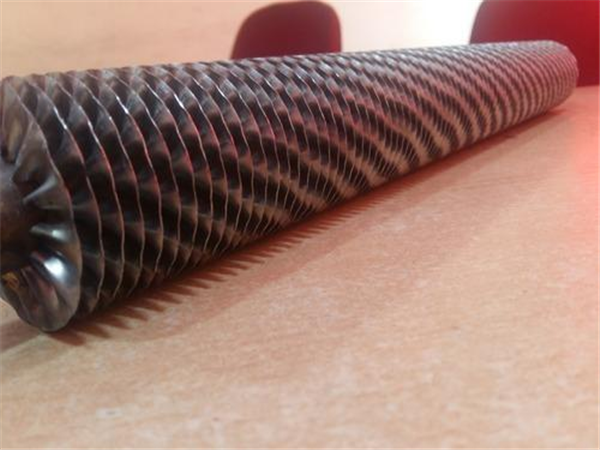

Carbon Steel Sprial Crimped Fin Tube

Carbon Steel Spiral Crimped Fin Tube

Fabrication Process

Crimped Fins are spirally wrapped onto the base tube, without welding, but spot welded. The steel strip can be copper, carbon steel, stainless steel.Non-ferrous tubes and fins on either root soldered or completely tinned.

Material Standard of crimped fin tube

Both base tube and fin can be carbon steel and stainless steel

Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B

Stainless Steel: TP304/TP304L , TP316 / TP316L

Advantage and Applications

Since the stainless steel is with high corrosion resistance, the stainless steel crimped fin tube can be widely used when the circumstance has a certain degree of corrosion or cleanliness, such as climatic industry, heating, drying and cooling. Usually applied in fin tube heat exchangers.

Maximum working temperature is 180℃.

To better quote your enquiry, please indicate following specifications

1. Tube/ Fin Material

2. Tube Outer Diameter

3. Fin Height

4. Fin Pitch
